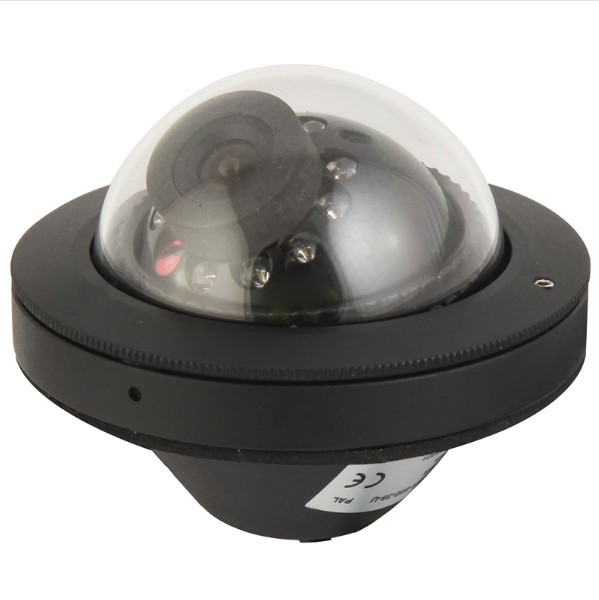

IP67 Waterproof IR optional CCD Infrared Dome Vehicle Security Camera System

Name: IP67 Waterproof IR optional CCD Infrared Dome Vehicle Security Camera System
Brand: RECODA
Price: 1 USD

Brand Name : RECODA

Model Number : C807-AHD

Certification : CE, FCC

Place of Origin : Guangdong, China

MOQ : 2 Pieces

Price : negotiation

Payment Terms : T/T, Western Union, Paypal, D/A, D/P, L/C

Supply Ability : 4,000 Pieces Per Month

Delivery Time : 3 ~ 8 work days

Packaging Details : Well packed in Neutral Color Box, 63Pieces / CTN

Resolution : 1280*960P

Fixed Lens : 3.6mm

Image Sensor : 1/4" CMOS

Power Voltage : DC12V

TV System : PAL / NTSC

Waterproof Rate : IP67

LEDs : 10 LEDs with 850nm

IR Range : 10M

Contact Now

IP67 Waterproof IR optional CCD Infrared Dome Vehicle Security Camera System

Main Features:

^{1> Vehicle dome camera
2> Fixed lens 6.0/3.6/2.8mm
3> Easy installation on ceiling or wall, surface or flush mount.
4> 10 Infrared LED lights.
5> Including 35° angled surface mount adaptor.
6> Analog High Definition 1280*960P
7> Outstanding signal to noise ratio better than 50dB
8> Compact function for Shutter/Auto, BLC/Auto, AGC/Auto;
9> IP67 waterproof}

Specifications:

Model No.	C807-AHD
Camera Type	Dome Camera
Image Sensor	1/4”Sony CMOS
Effective Pixels	PAL: 1280960 NTSC: 1280960
Sensitivity	0 Lux at F1.2 (LED On)
Signal System	PAL / NTSC
Horizontal Resolution	960P
IR LEDs	10 LEDs with 850nm
Lens Mount	Board Lens 3.6mm/F2.0 (Option:3.6 / 2.8mm)
S/N Ratio	More Than 50dB (AGC Off)
Electronic Shutter	1/50(1/60) ~ 1/10,000 Sec.
White Balance	Auto
AGC	Auto
Power	DC Power Jack
Video Output	BNC / Aviation
Video Output Level	1.0 Vp-p (75 Ohms, composite)
Supplied Voltage	DC12V
Power Consumption	Less than 130mA
Dimensions	77 x 60.3 mm
Weight	Approx.0.2kg
Waterproof Rate	IP67
Operating Temperature	-10°C to +50°C

Pictures:

IP67 Waterproof IR optional CCD Infrared Dome Vehicle Security Camera System
